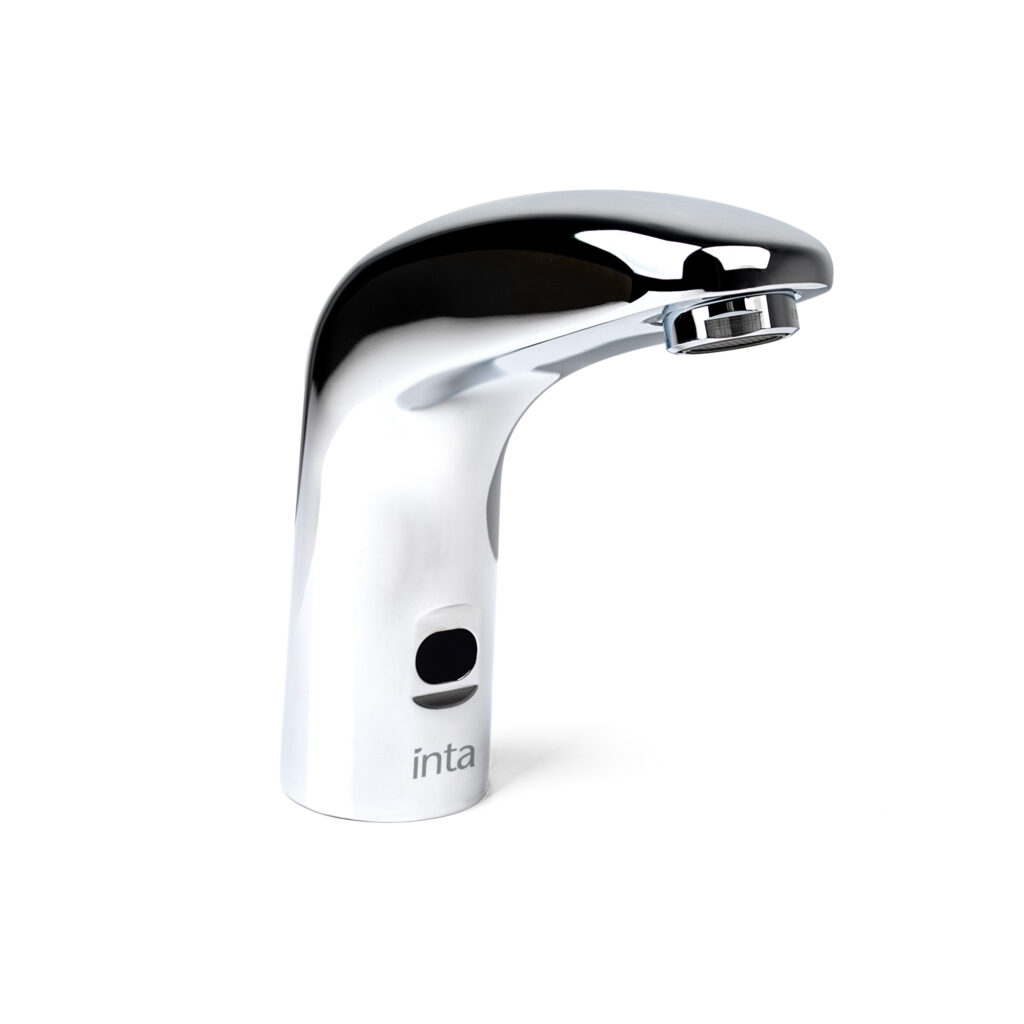

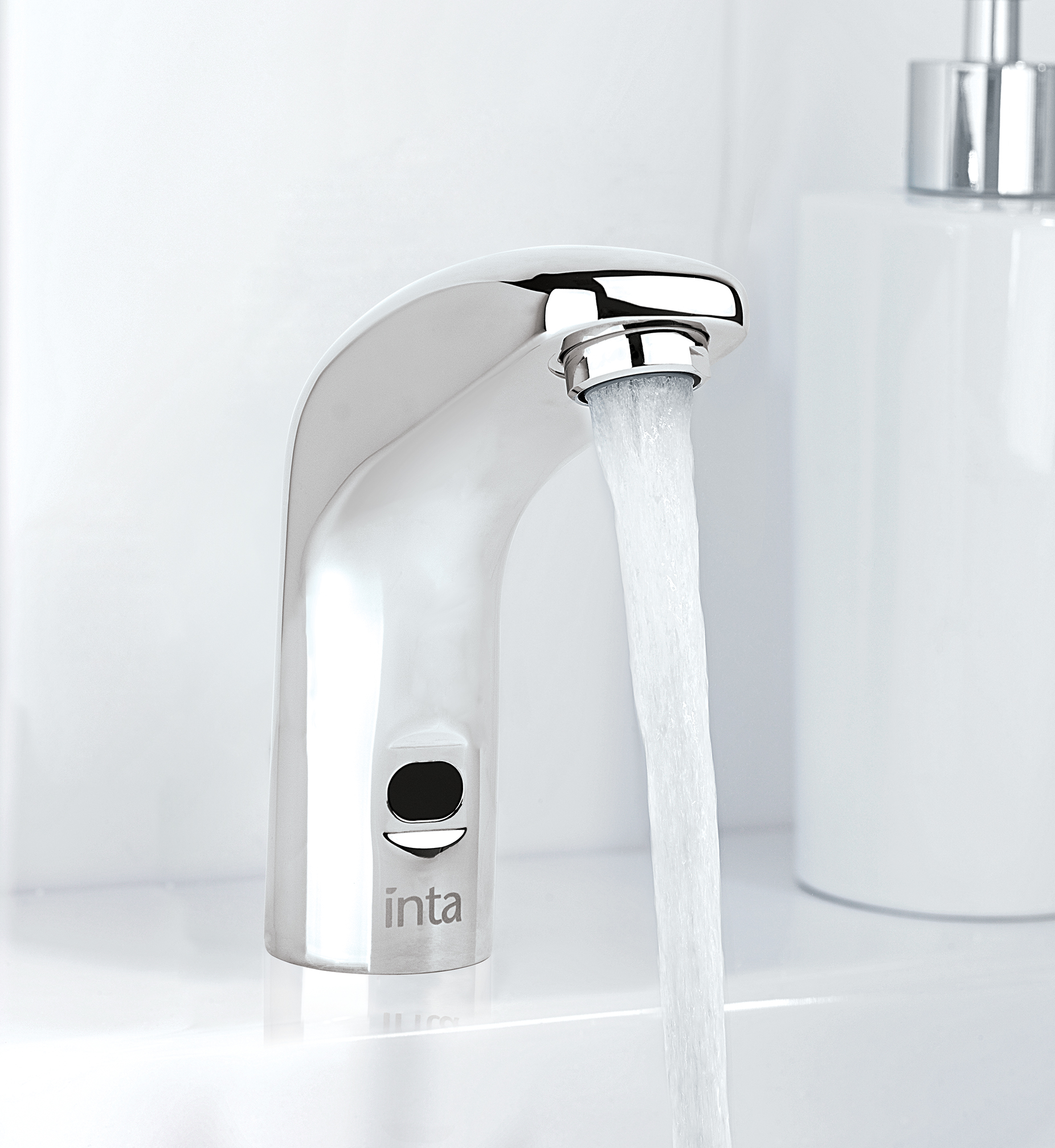

Infrared Contemporary Basin Mounted Tap

Product_image_-_ir120cp

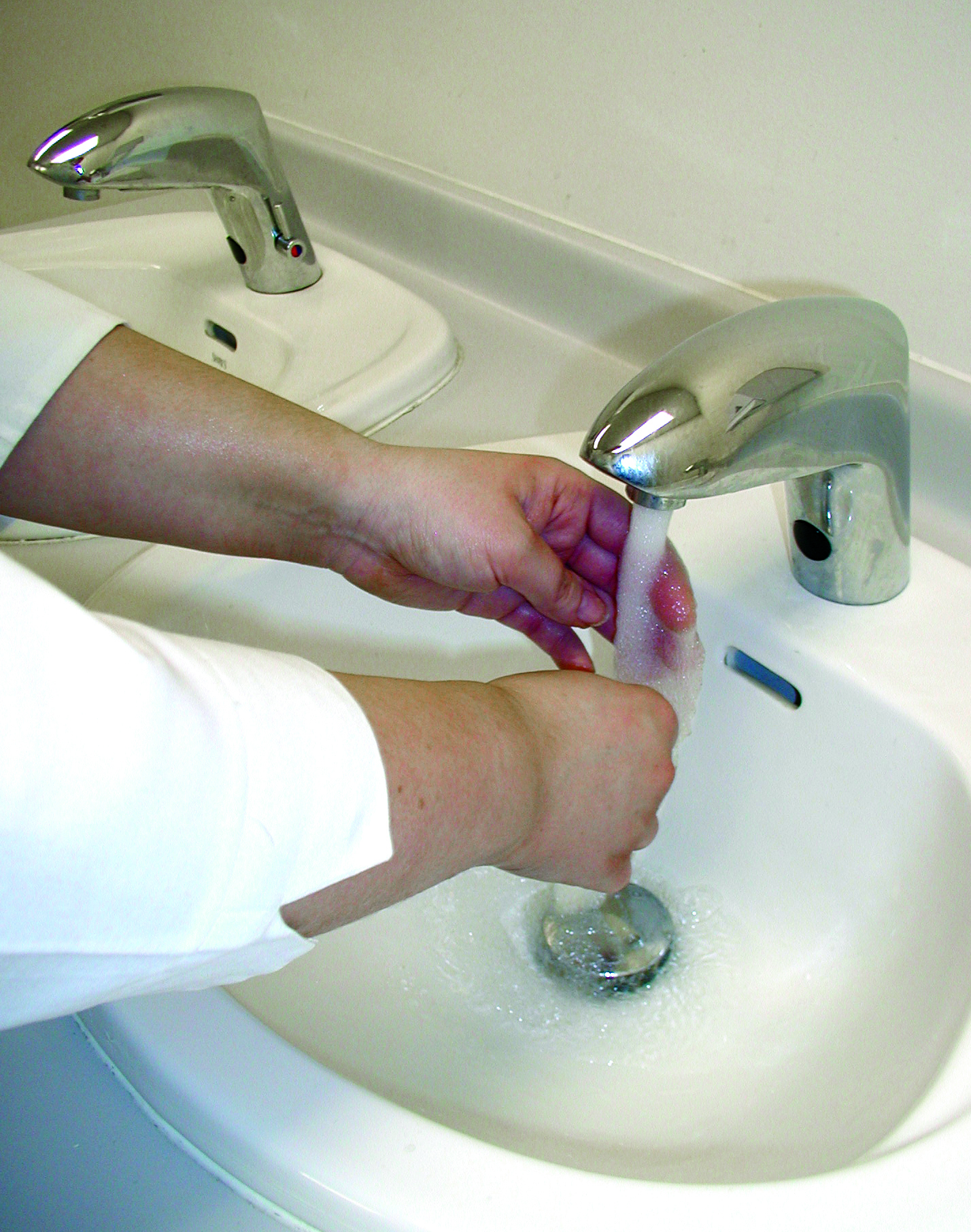

Delivering water without contact with the tap is an ideal solution where hygiene is paramount, such as public toilets and washrooms. The users presence is detected by an Infrared sensor which controls a solenoid valve to turn on a timed flow of water. This tap has been designed for use with an approved Inta thermostatic mixing valve

  • Hygienic
  • Water saving - maximum 6 litres per minute
  • Automatic calibration of the sensor field
  • 9V lithium battery with IP65 protection according to EN60529 (dependent on model)
  • Battery life approximately 4 years with 150 operations per day
  • Battery and Mains operated versions available
  • Advanced remote control available (IR303CP)
Description (click products to expand) Code
Infrared Contemporary Basin Mounted Tap (Battery Operated) IR120CP

Specification

  • Connections: G ½" BSP / 15mm compression
  • Factory set flow time: 8 seconds
  • Flow time adjustment range: 0-60 seconds
  • Max basin thickness: 26mm
  • Max inlet temperature: 70°C
  • Max operating pressure static: 8 bar
  • Min operating pressure dynamic: 1 bar
  • Power source: Battery operated
Infrared Contemporary Basin Mounted Tap (Mains Operated) IR121CP

Specification

  • Connections: G ½" BSP / 15mm compression
  • Factory set flow time: 8 seconds
  • Flow time adjustment range: 0-60 seconds
  • Max basin thickness: 26mm
  • Max inlet temperature: 70°C
  • Max operating pressure static: 8 bar
  • Min operating pressure dynamic: 1 bar
  • Power source: Mains operated
