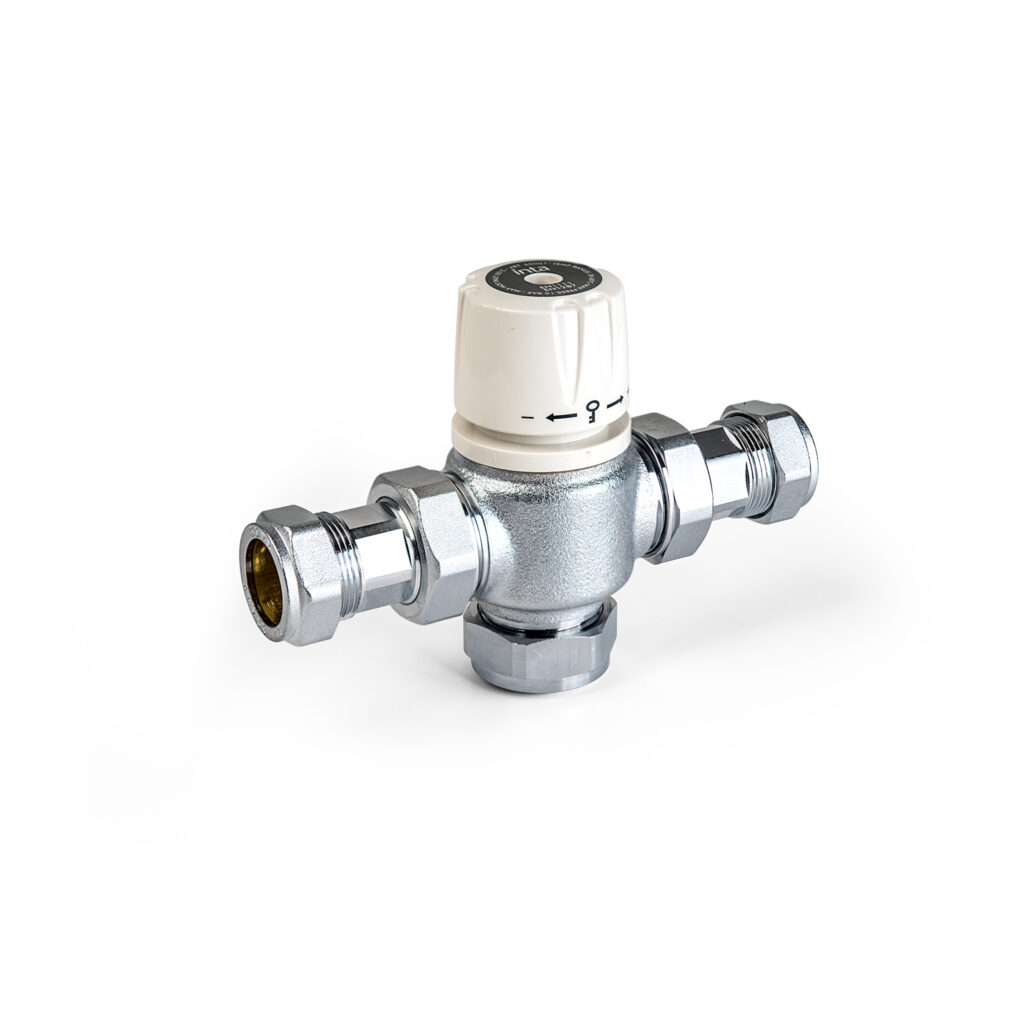

Intamix Low Pressure Under Bath Thermostatic Mixing Valve 22mm

The Intamix low pressure under bath mixing valve is designed primarily for bath applications to meet the requirements of Building Regulations Part G. The new regulations state the temperature of water to a bath should be limited to no more 48°C. This allows for heat loss in metal baths. A comfortable bathing temperature is around 37°C.

Delivering safe blended hot water with high flow rates. The Intamix low pressure thermostatic mixing valve is the ideal solution to the requirements of Building Regulations Part G.

• Thermostatic protection




• Single piece thermostatic cartridge construction




• Automatic shut off in the event of hot or cold water failure




• High flow rate, low pressure drops




• Adjustable outlet temperature




• Temperature stability ± 2°C




• 22mm or 28mm compression connections with integral check valves and filters
