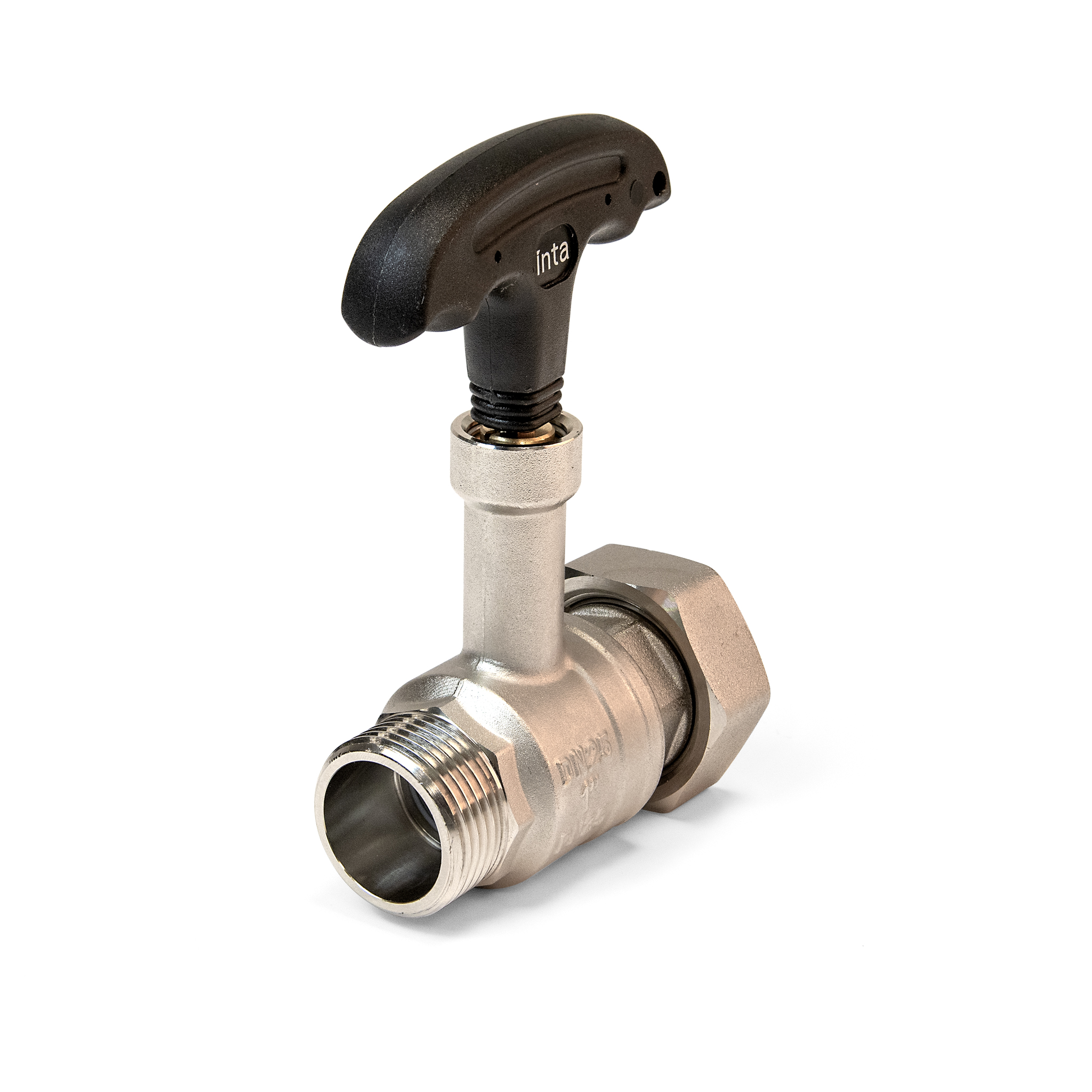

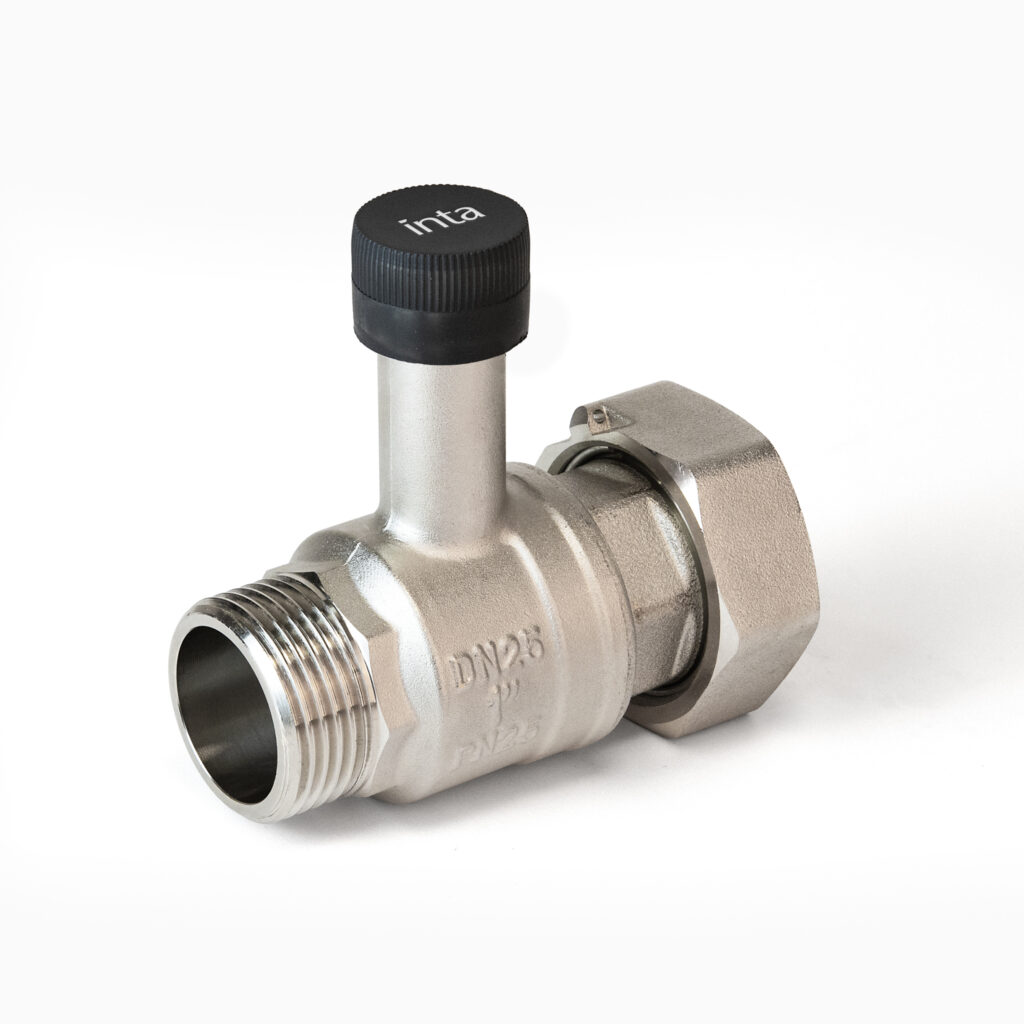

K-Type Extended Heat Pump Ball Valve

SKUConnectionKv-value

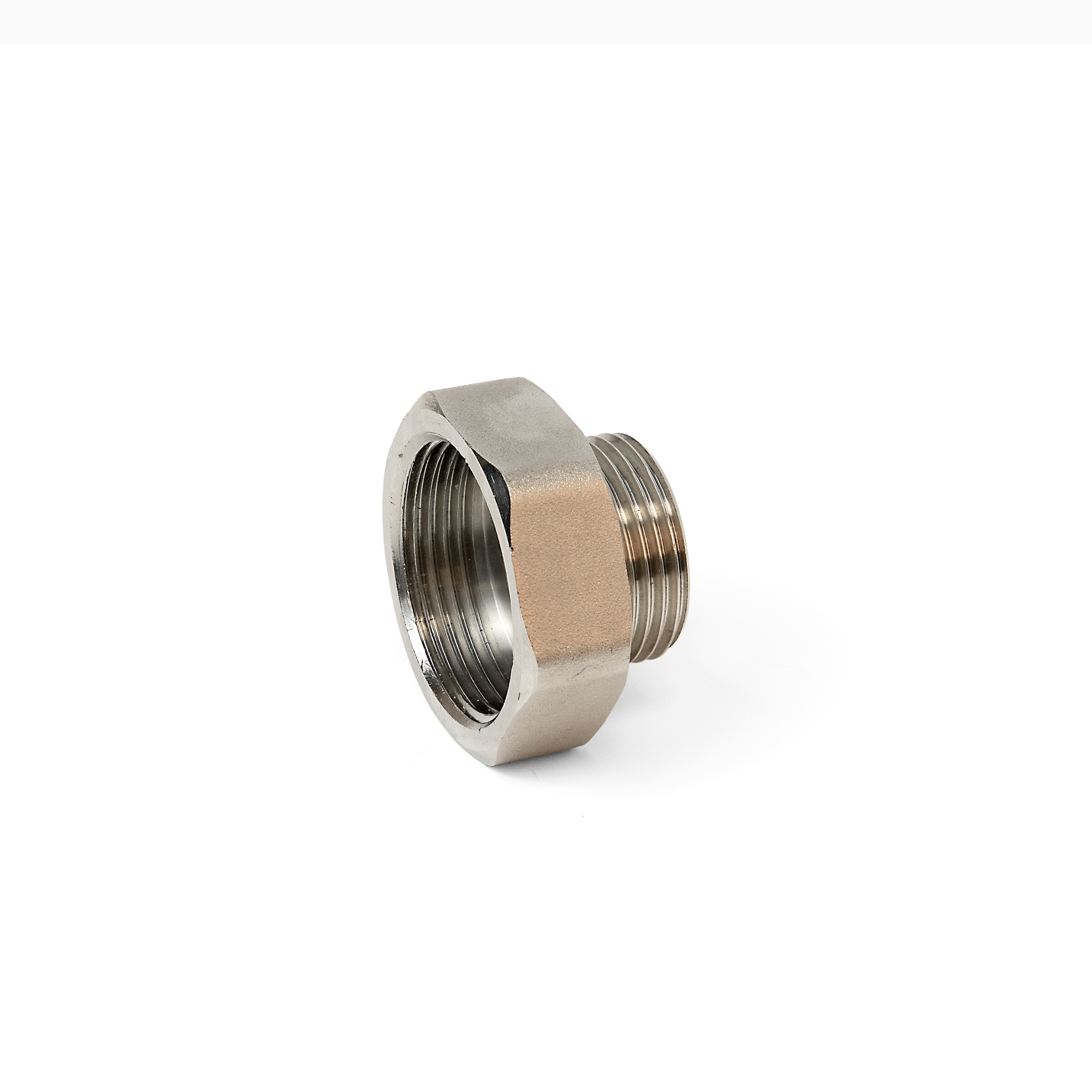

HPADAP114X11" Male x 1 1/4" Female Adaptor
HPBV11FS1" Female Swivel x 1" Female Swivel66m³/h
HPBV111" Male x 1" Female Swivel66m³/h
HPBV1141" Male x 1 1/4 Female Swivel66m³/h
HPBV114X21 1/4" Male x 1 1/4" Female Swivel80m³/h
HPBV114FS1 1/4" Female Swivel x 1 1/4" Female Swivel80m³/h

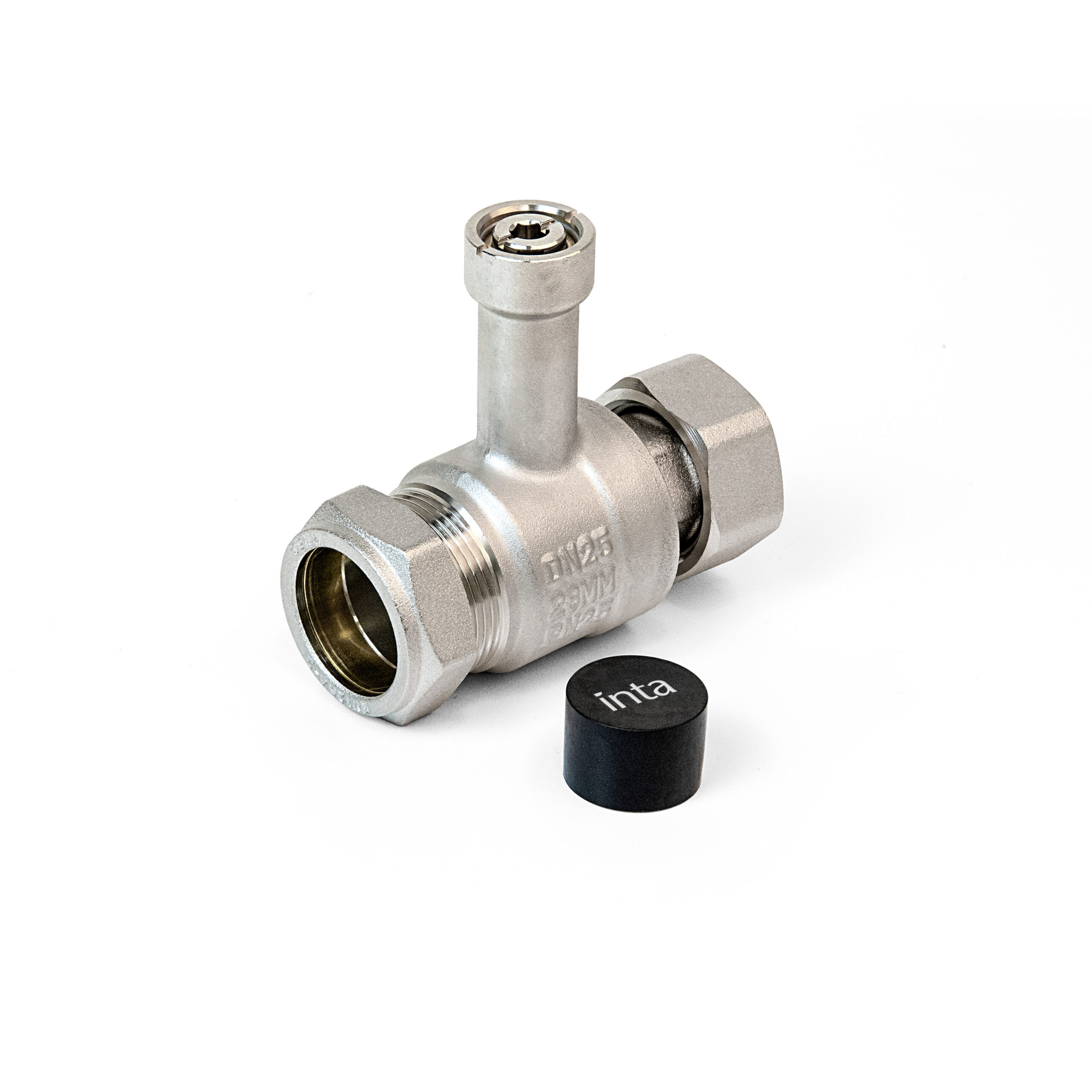

HPBV281" Female Swivel x 28mm66m³/h
HPBV351 1/4" Female Swivel x 35mm80m³/h
Ball Valve Insulation
No downloads available.
Heat Pump side by side connections complete installation

Heat Pump side by side connections complete installation

Intatec High Level Heat Pump Installation

Intatec High Level Heat Pump Installation

KTYPE Heat Pump Valve - Intatec

KTYPE Heat Pump Valve - Intatec

KTYPE Heat Pump Valves

KTYPE Heat Pump Valves

    • Solid brass construction
    • Pressure rating of PN25
    • Working temperature range of -10 to 90⪚C
    • ISO228 threads
    • Variety of connections to suit all installations
    • Fixed key type adjuster allows the ball valve to be fully insulated without effecting its operation
    • Supplied with an adjustment tool
    • Supplied with a dust cover to protect the adjuster
    • WRAS Approved
