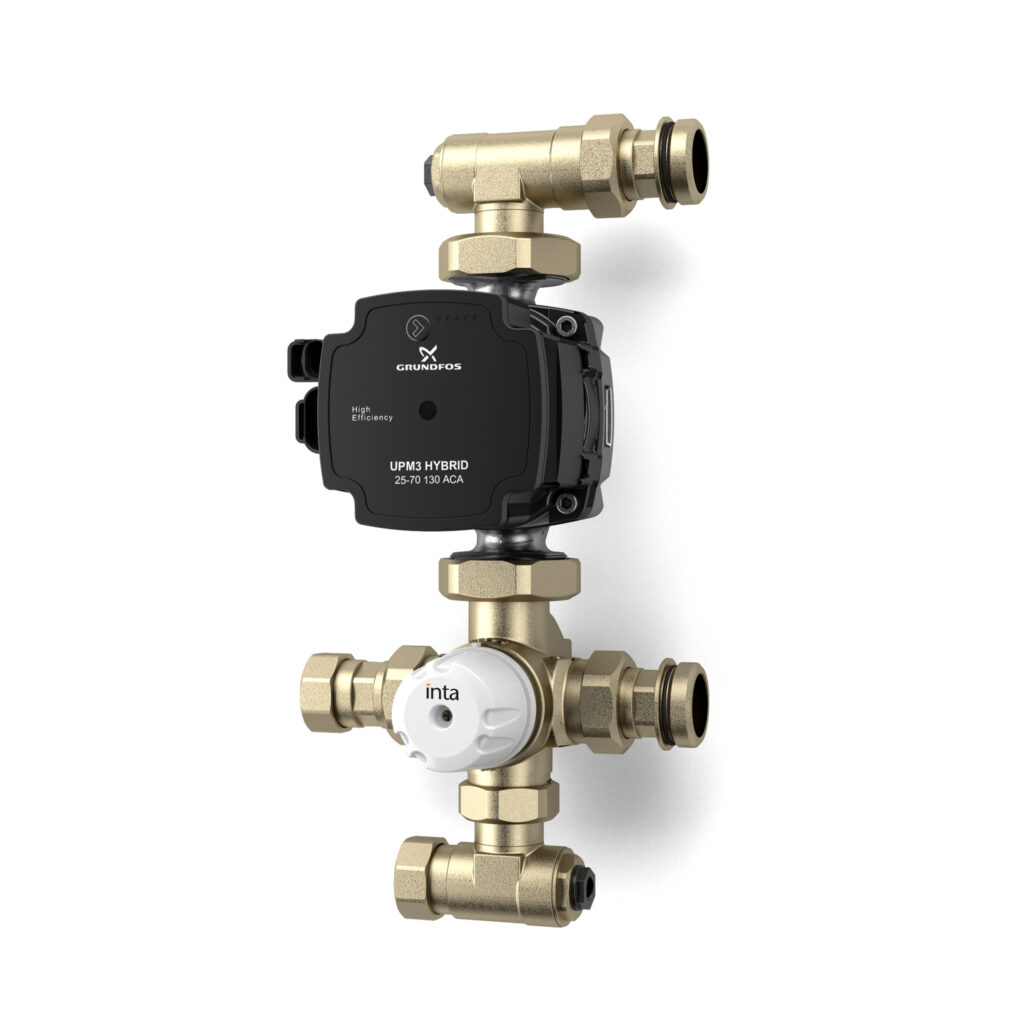

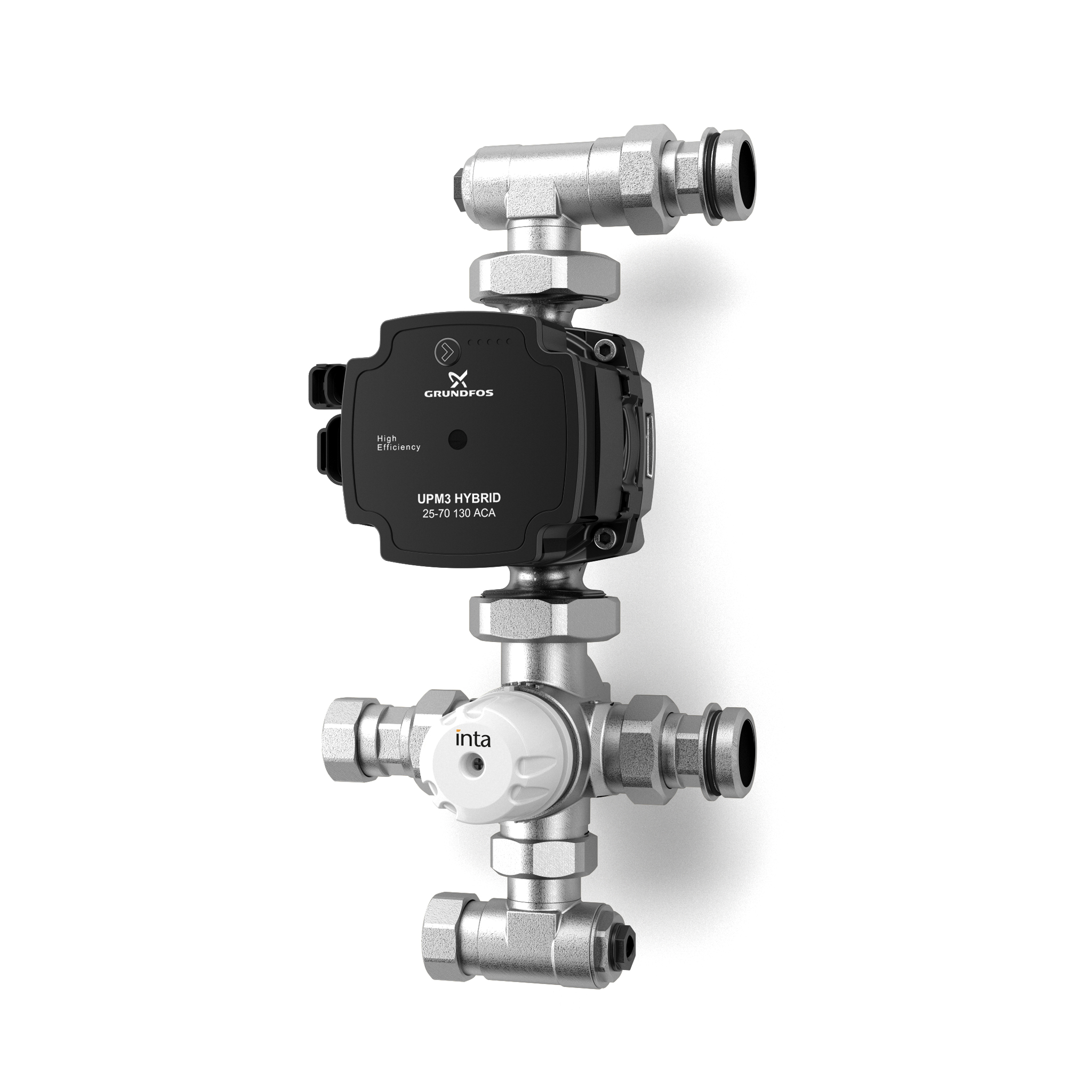

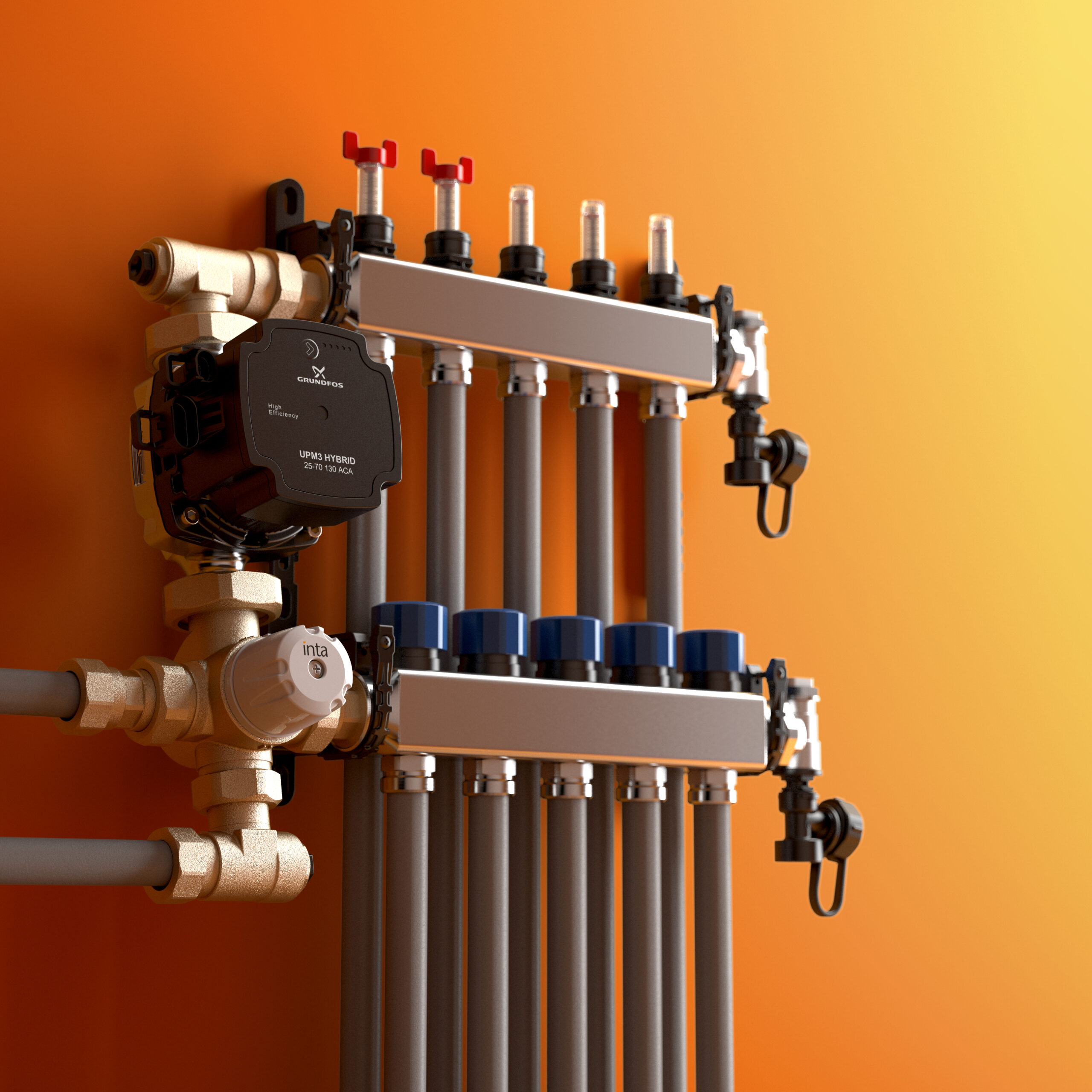

Inta’s underfloor heating pump mixer sets are designed to blend flow and return from the heat source in underfloor heating systems which have a heating load of up to 15Kw. The pump sets have been specifically designed for installation with manifolds and their lightweight design makes them ideal for wall mounting. Featuring a fully ERP compliant, energy efficient pump as well as a port for an automatic air vent, the Inta pump set is the installers choice for fuel efficient, reliable underfloor heating installations.
-
- Blends flow and return to keep a constant floor temperature
- Supplied with an ERP compliant, high efficiency pump
- Suitable for a heat loading of up to 15Kw
- Designed for use with Inta manifolds
- Temperature range 30 – 60°C
- Temperature stability ± 2°C
- Maximum static pressure 10 bar
- Maximum inlet pressure ratio 2:1
- Maximum inlet temperature 90°C
- KV Value: 3.2 m3/hr
