Zilmet Hydro-Plus E Wall-Mounted Potable Expansion Vessel

SKUConnectionVolume (Litres)Height (mm)Diameter (mm)Max. Working Pressure (bar)Pre-Charge (bar)
Z1-30002S1/2" BSP2196142103.5
11E00005003/4" BSP5270160102
11E00008003/4" BSP8280160102
11E00012003/4" BSP12264160102
11E00018003/4" BSP18349160102
11E00024001" BSP24390160102
No downloads available.

Our Hydro-Plus E vessels combine smart engineering with long-lasting protection.

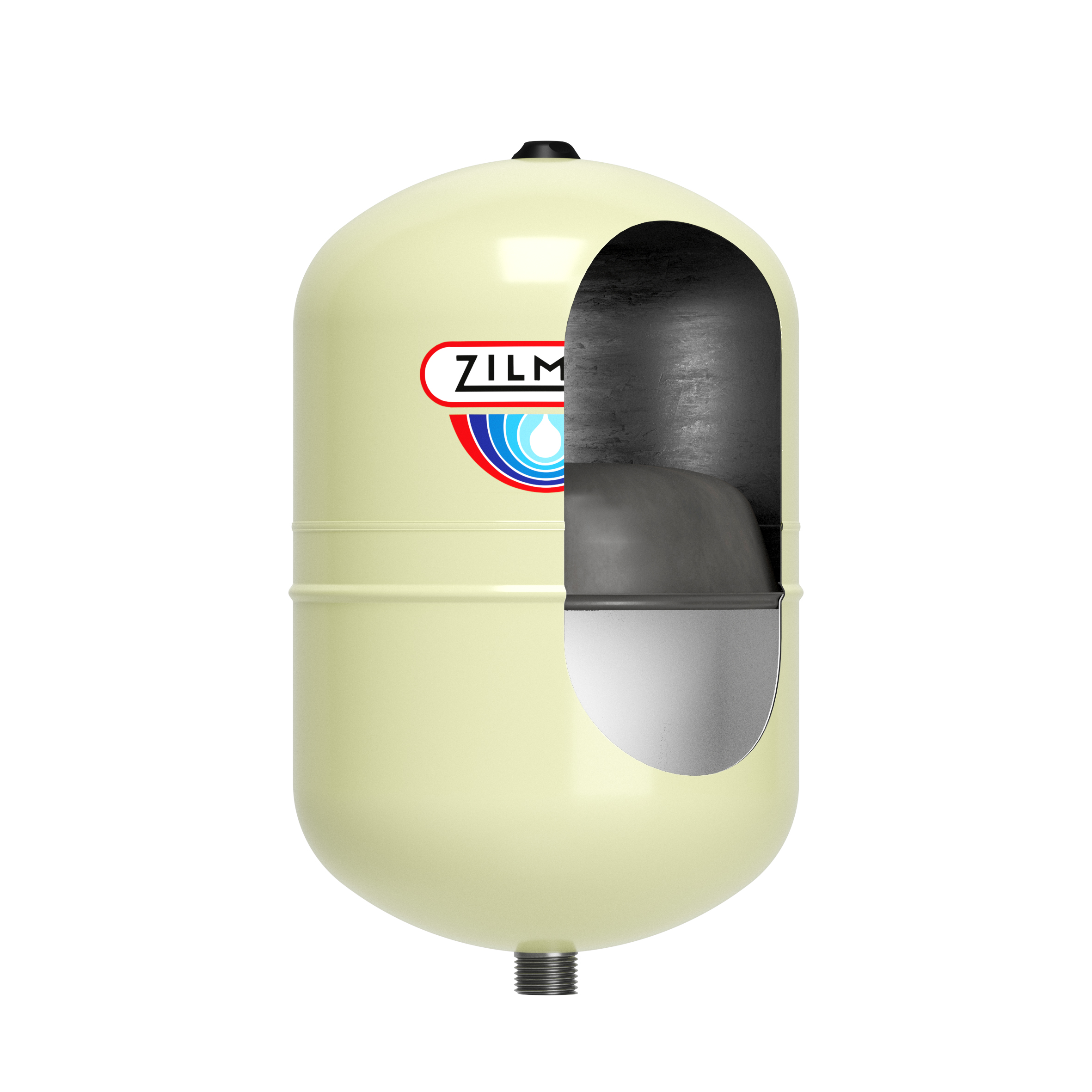

Inside, a fixed butyl diaphragm to avoid water stagnation and a polypropylene lining to create a physical barrier between the water and vessel wall. On the outside, a tough epoxy powder coating which provides long-lasting protection against corrosion.

    • 6 Year Warranty
    • 100% factory tested
    • Externally finished in a hard wearing epoxy powder coating
    • Fixed butyl membrane designed to avoid any water stagnation.
    • Fully certified according to the pressure equipment directive 2014/68/EU
    • Operating temperatures: -10 to 99°C
    • Maximum working pressure: 10 Bar
    • Internal polypropylene lining creating physical barrier between water and vessel wall
    • Ideal for installations with poor water quality
    • WRAS approved
