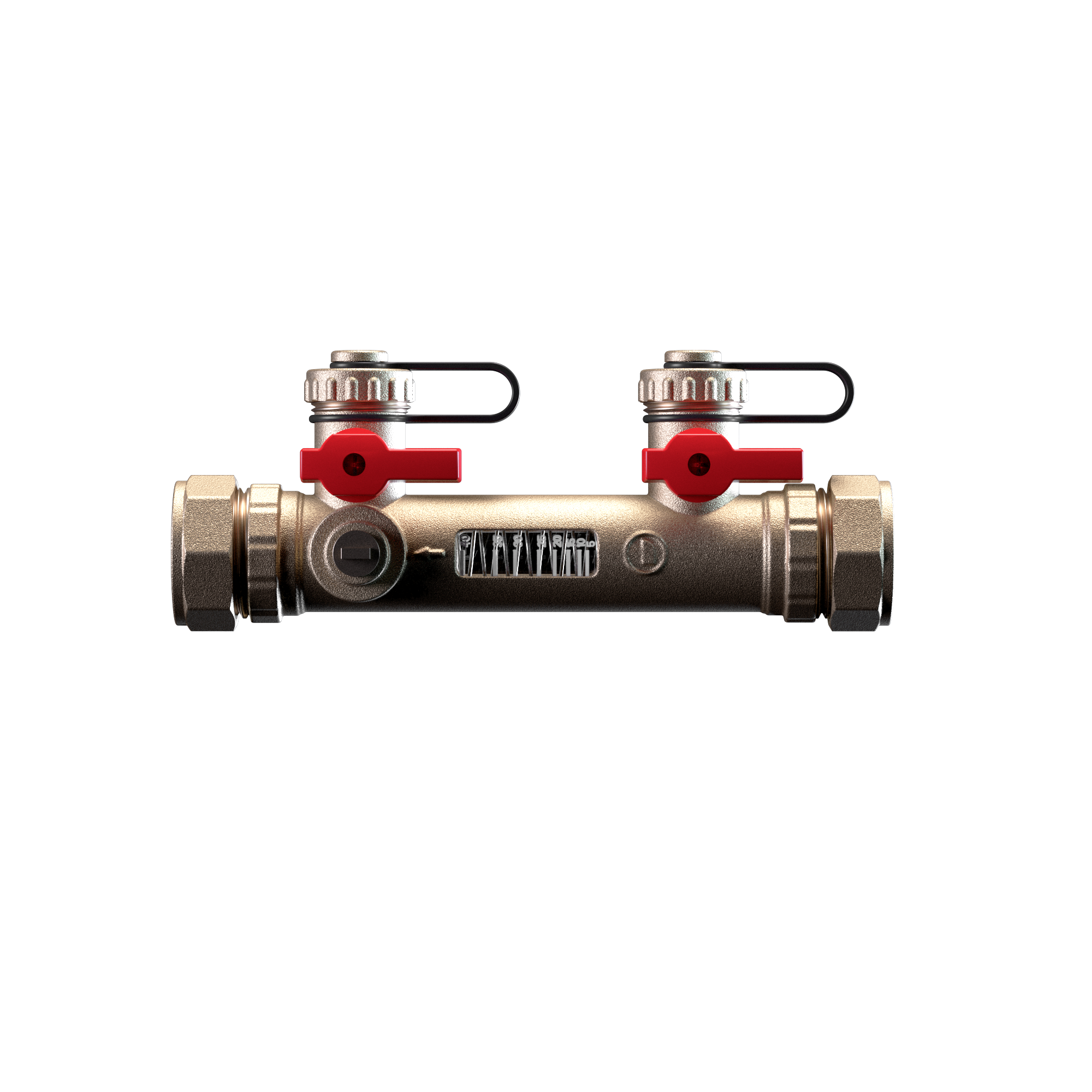

28mm Flow Balancing Valve With Fill And Flush

SKU	Connection	Flow Rate (L/min)
INFBV28	28mm	4-40
INFBV2850	28mm	10-50

Installation and Operation Manual – INFBV28, INFBV2850	Download
Datasheet – INFBV28, INFBV2850	Download

No downloads available.

Maximum Inlet Pressure: 10 Bar

Maximum Inlet Temperature: 110°C

Minimum Inlet Temperature: -20°C

Medium: Water + Glycol up to 50%

Regulates the flow of fluid through the system
Maximises heat collection in cylinders
Bi-directional ball valve stops water flow and allows access to fill and flush connection for servicing
28mm compression connections according to EN1254-2
G 3/4″ Fill & Flush connections with retained sealing cover caps
Clear window allows for easy adjustment of the flow rate
Suitable for use with water and up to 50% glycol solutions
