| SKU | Connection | Features |
|---|---|---|
| TVC34FF | G3/4" | With Water Meter Carrier |
| TVC01FF | G1" | With Water Meter Carrier |
| TVC34FF-CV | G3/4" | Without Water Meter Carrier |
| TVC01FF-CV | G1" | Without Water Meter Carrier |
| No downloads available. |

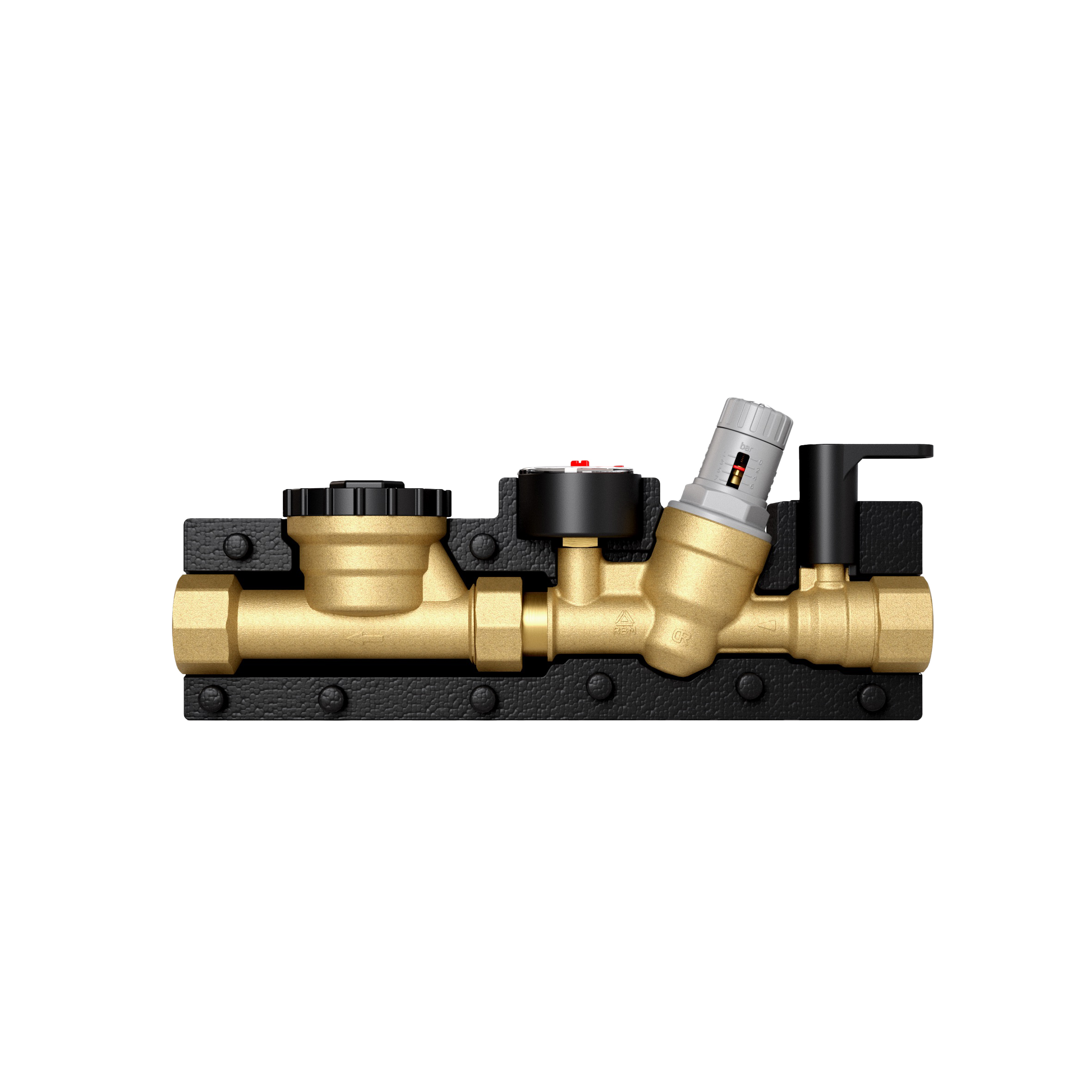

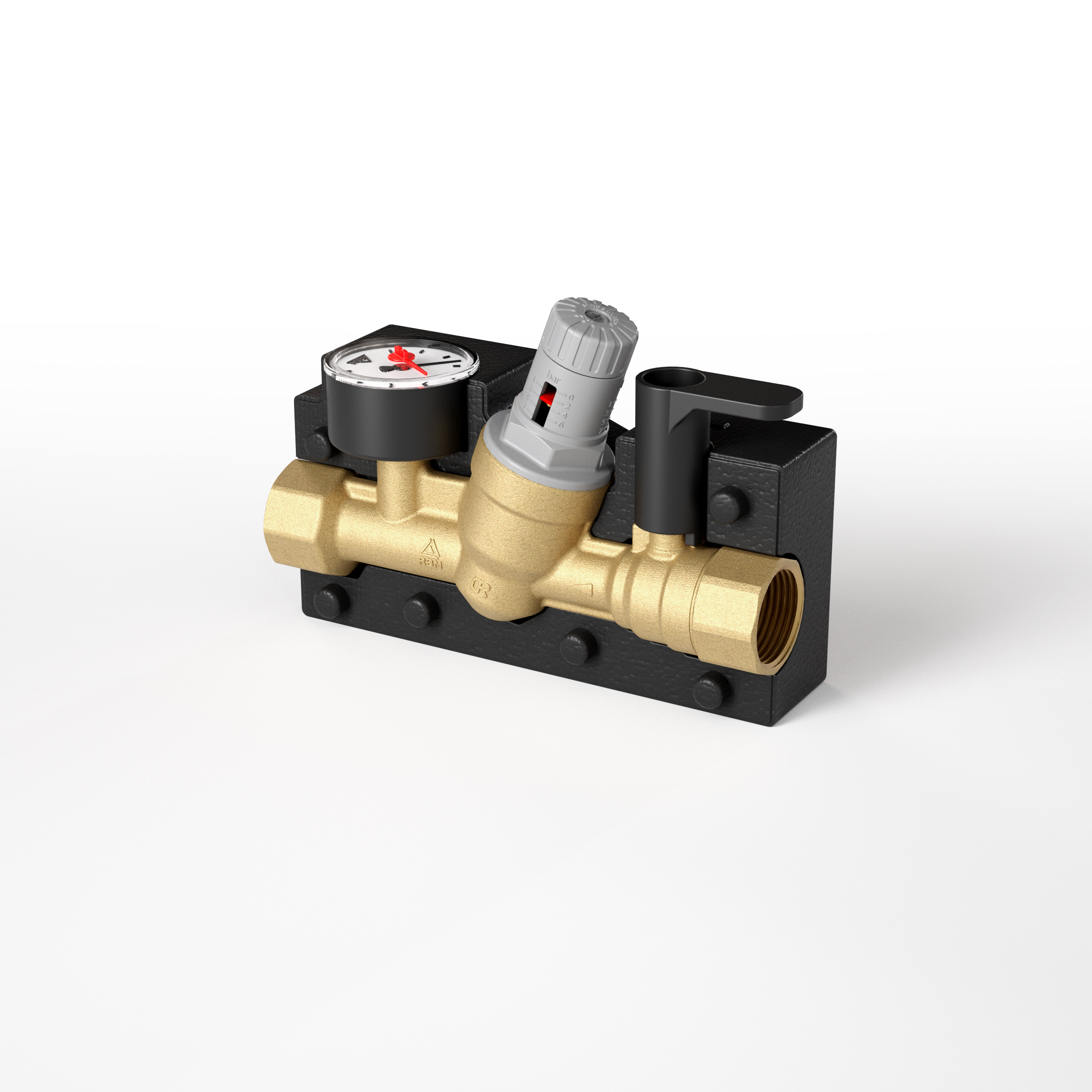

The Inta ApartmentHUB water meter assembly is a combination valve providing a stop valve, pressure reducing valve, pressure gauge, class D water meter carrier, double check valve and moulded insulation cover, in one convenient and easy-to-fit unit.

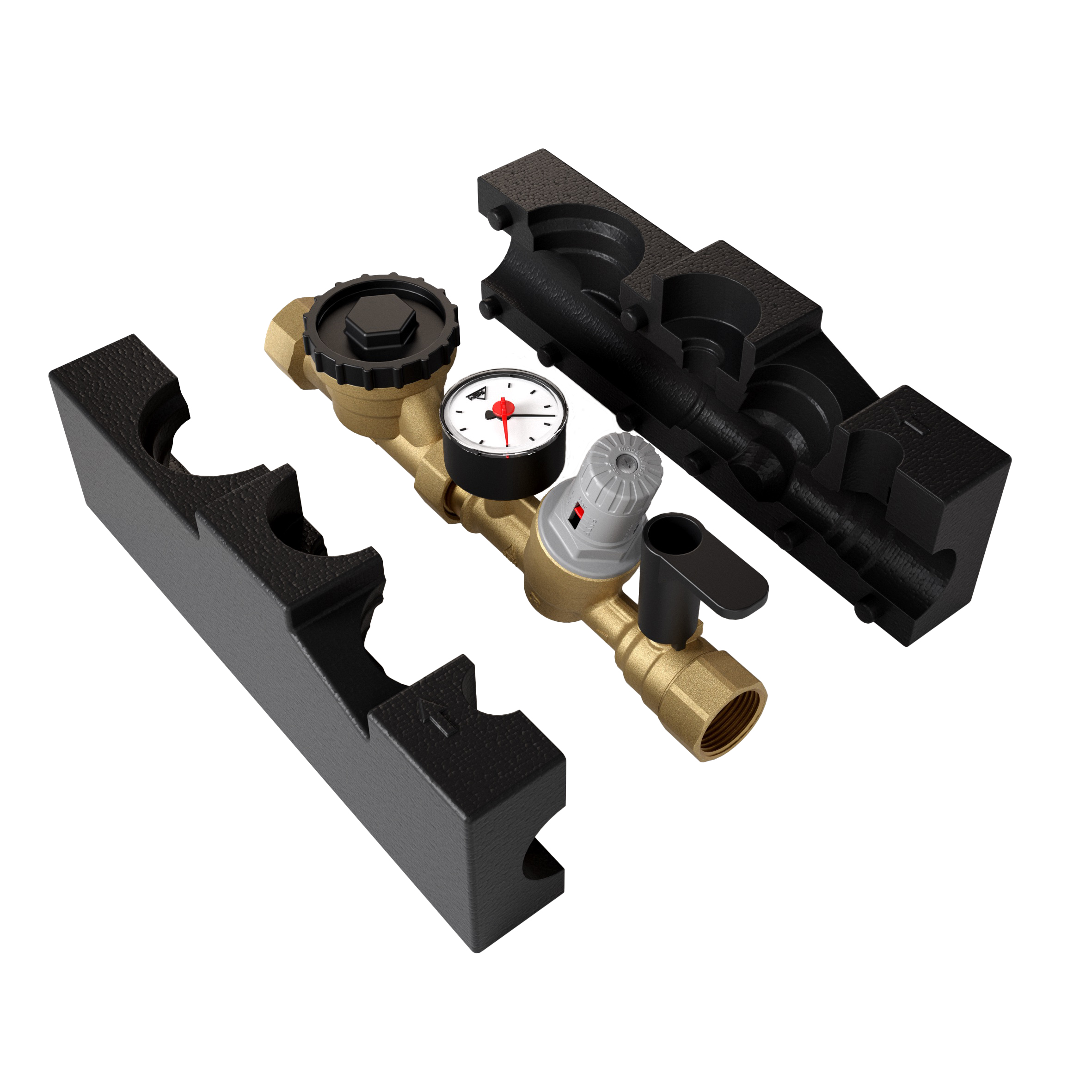

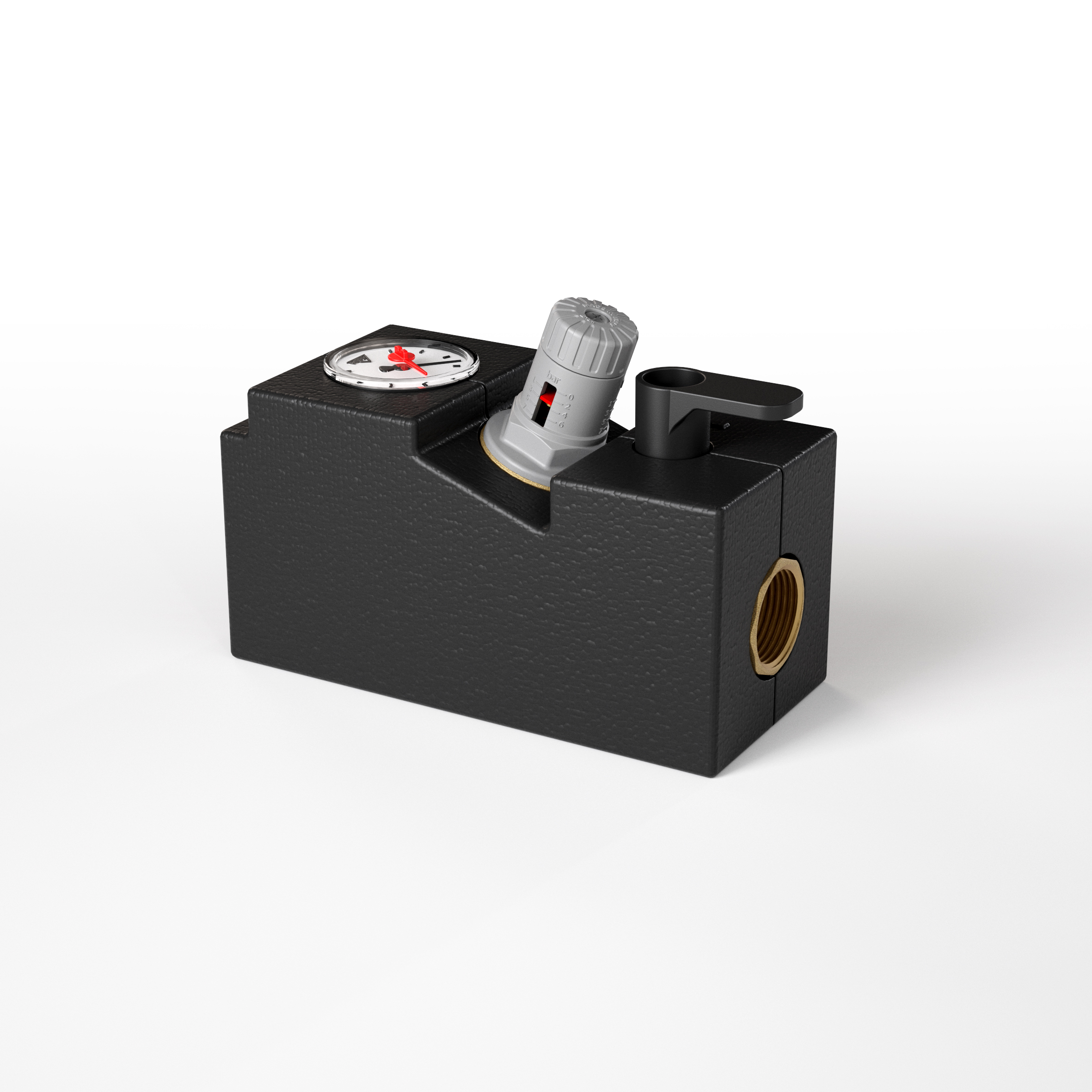

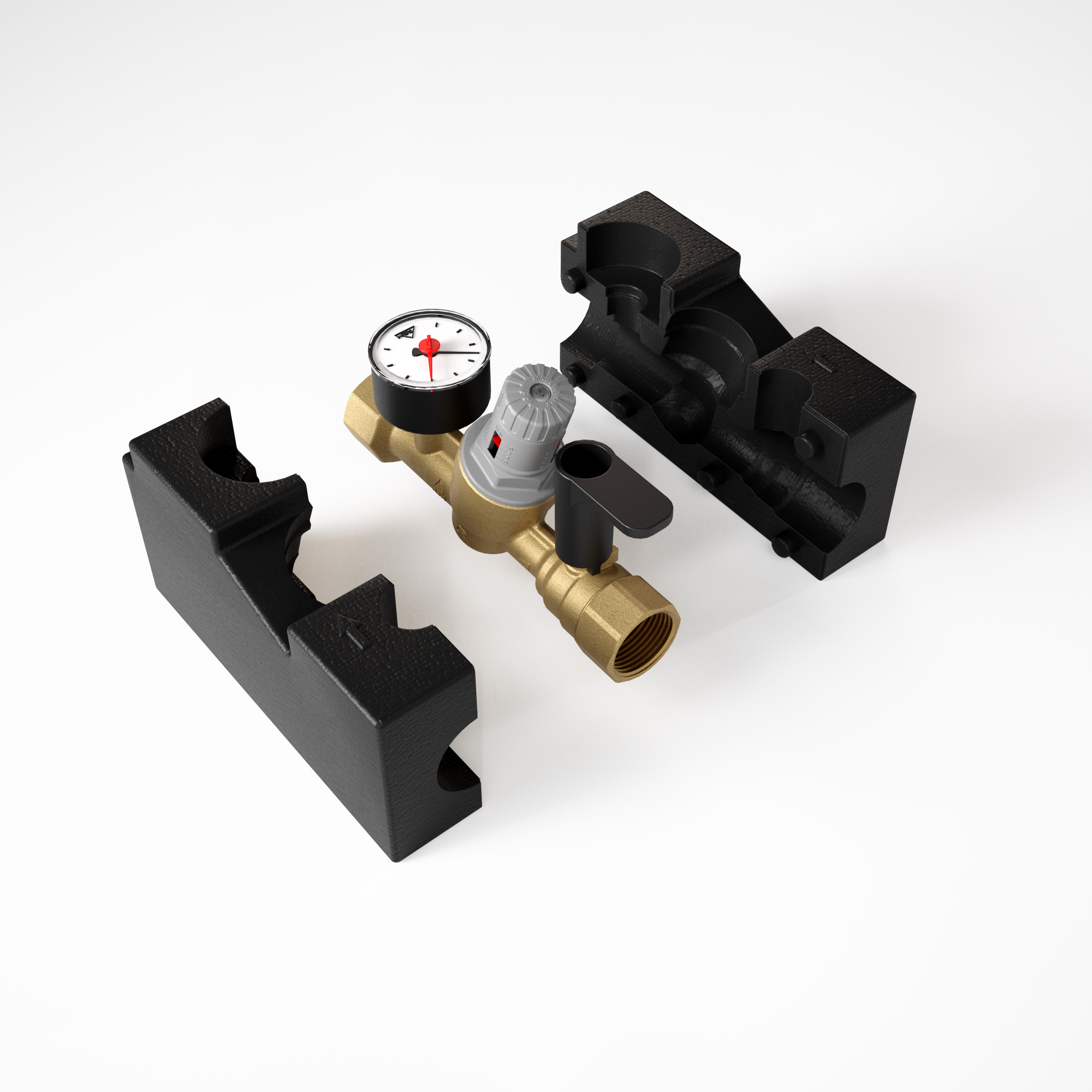

Supplied with a whole assembly insulation jacket as standard
Double check valve to eliminate the chance of backflow
Stop valve included to allow isolation from the rest of the system, ideal for multi-dwelling properties
Maximum inlet pressure (static): 16 bar
Maximum inlet temperature: 65°C
Pre-set Pressure: 4 bar
Pressure adjustment range: 1-6 bar
Installation: vertical or horizontal
