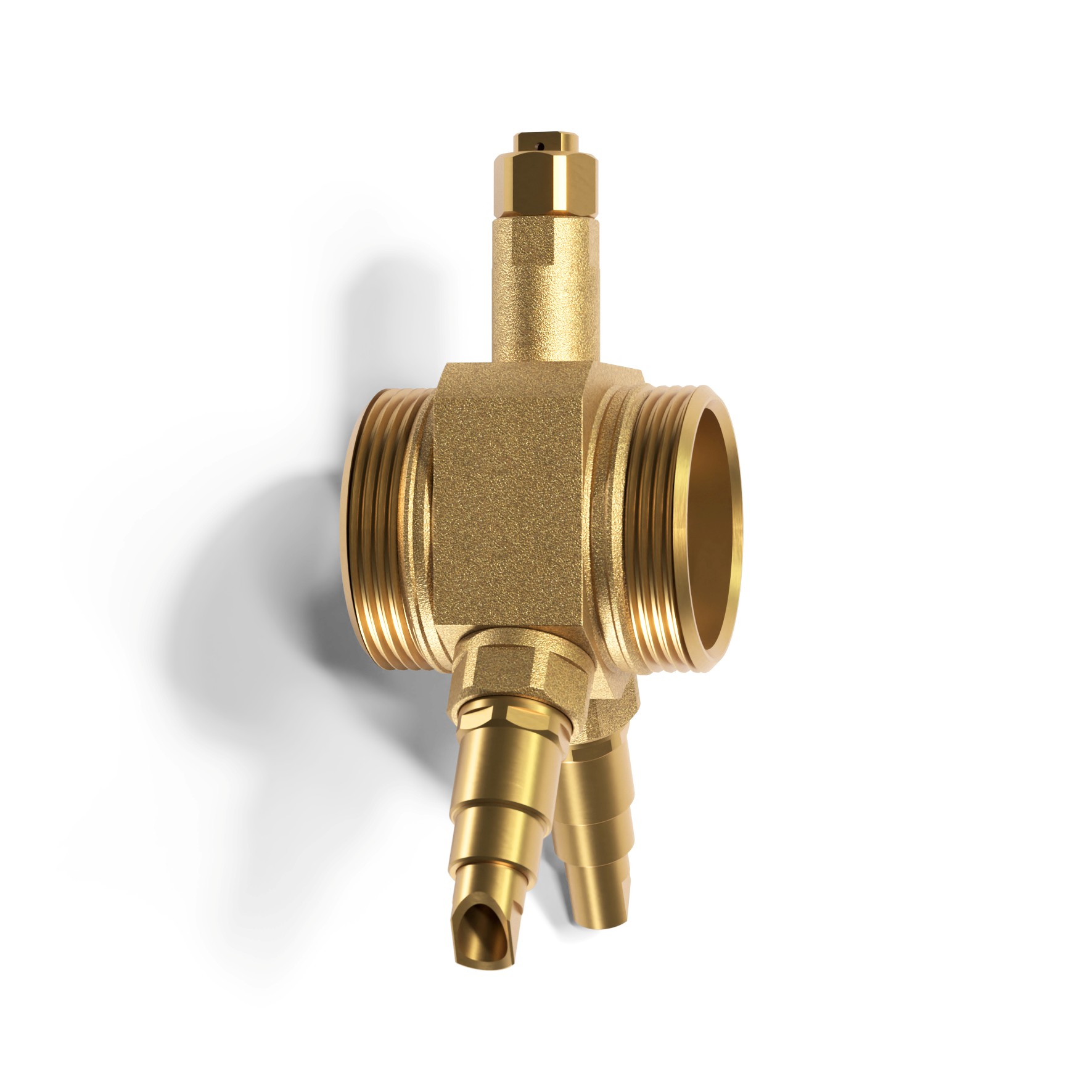

Inta Zero Anti Freeze Valve

The patent pending Inta Zero anti freeze valve has been developed specifically for heat pump installations where protection against freezing temperatures is essential. Unlike conventional frost protection devices that rely on ambient air temperature, the Inta Zero valve reacts directly to the water temperature within the system. This allows the valve to provide fast, accurate protection while maintaining overall system efficiency.

The valve can be fully insulated in line with Building Regulations Part L requirements without affecting its performance. Independent testing has demonstrated that the valve continues to operate correctly even when installed within insulated external pipework. For guidance on insulation requirements, refer to the UK Government Building Regulations Part L.

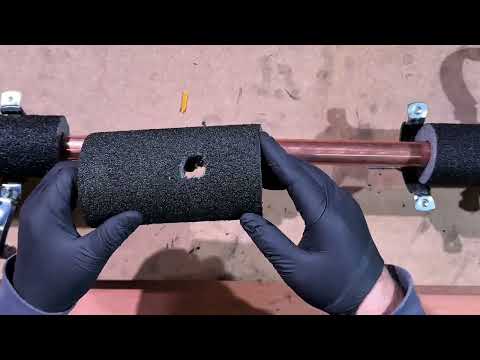

The Inta Zero range can also be paired with the Zero Guard protective cover and dedicated insulation accessories for enhanced installation protection.

Why Choose the Inta Zero Anti Freeze Valve

• Accurate frost protection
• Fully insulatable design
• Designed for heat pump installations
• Independent of ambient temperature
• Dedicated insulation available for Part L compliant solution
• Debris resistant cartridge construction
• Long-term reliable performance
• Multiple connection options
• Suitable for domestic and commercial applications

Technical Data

• Maximum Inlet Pressure (Static): 10 Bar
• Medium: Water
• Opening Temperature: 3°C
• Closing Temperature: 4°C
• Sensitivity: ±1°C
• Working Temperature Range: 0 to 80°C
• Ambient Temperature Range: -30 to 60°C
• Maximum Discharge Flow Rate @ 3 Bar: 1.5 l/h

View our full range of Anti Freeze Valves and Accessories or browse our range of Heat Pump Products.
